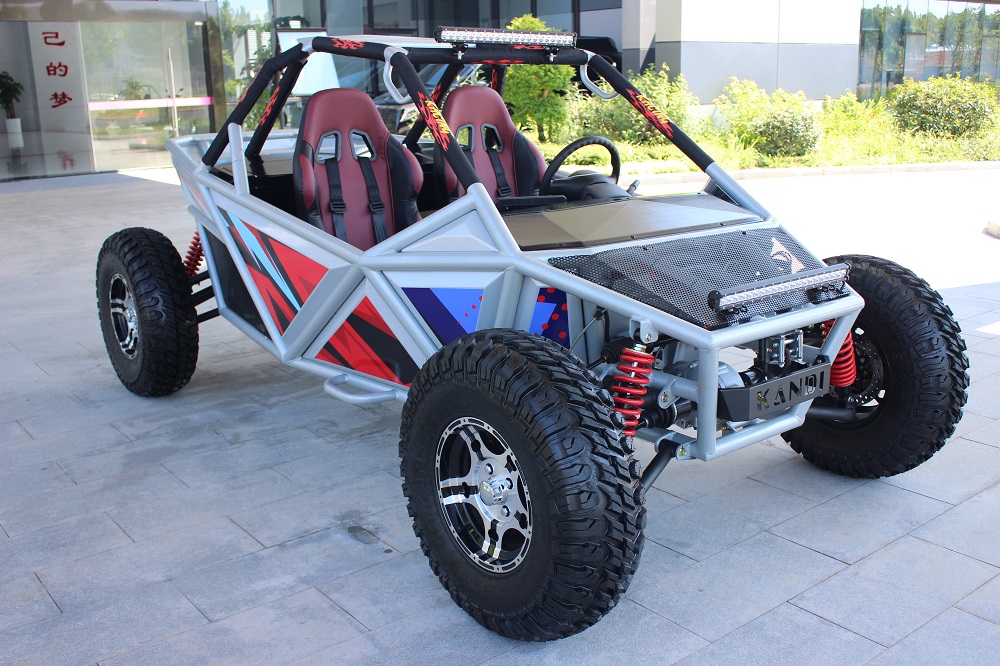

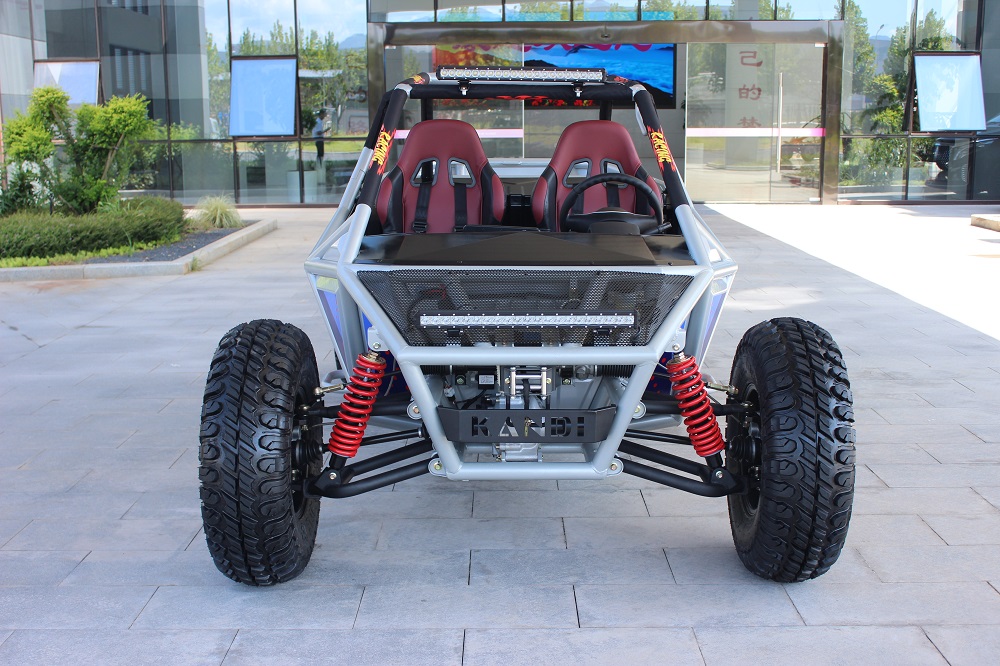

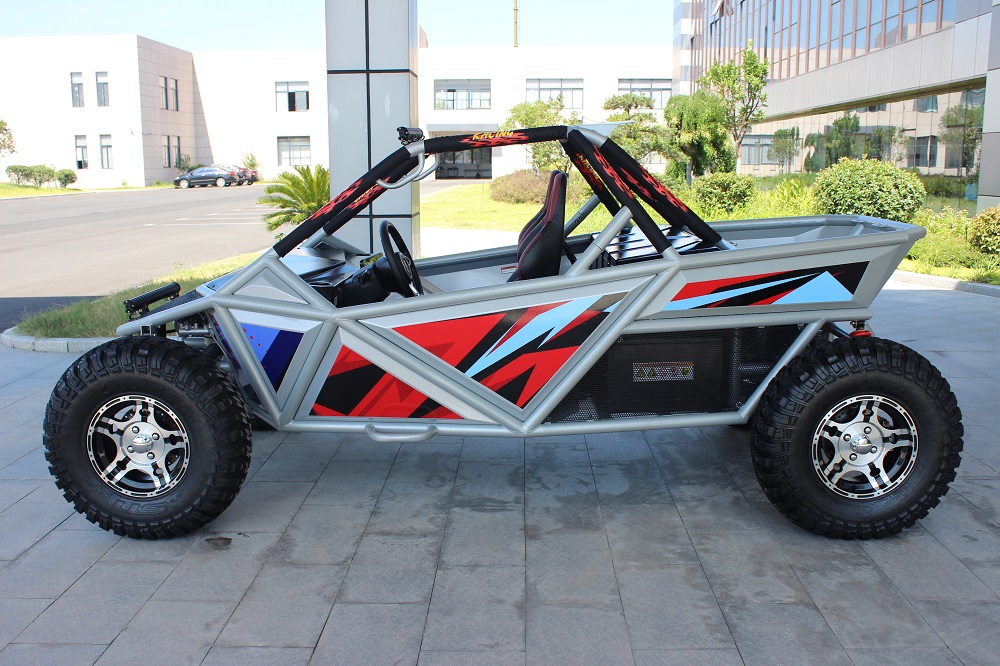

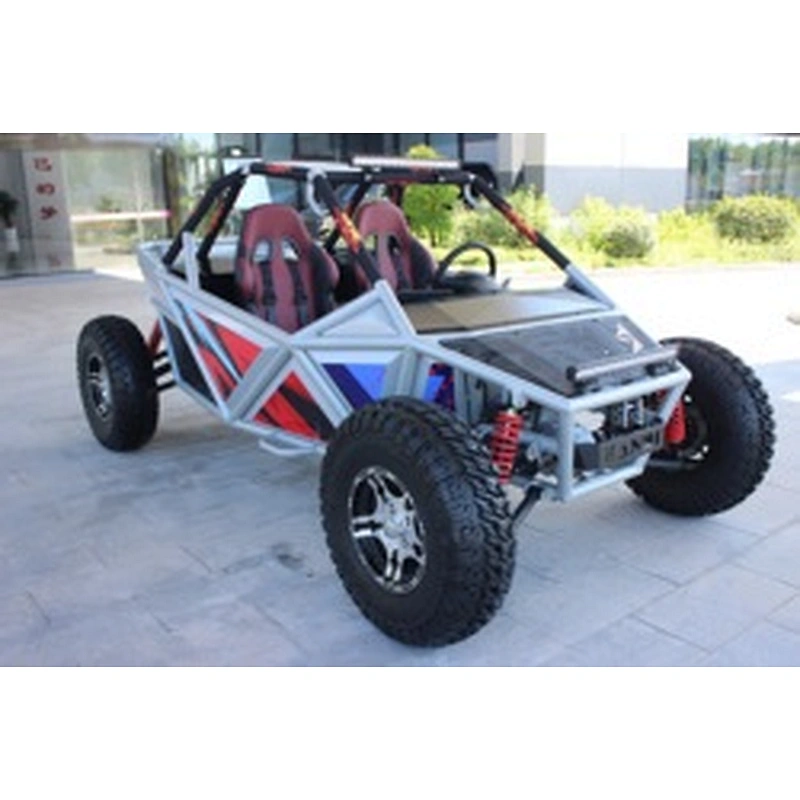

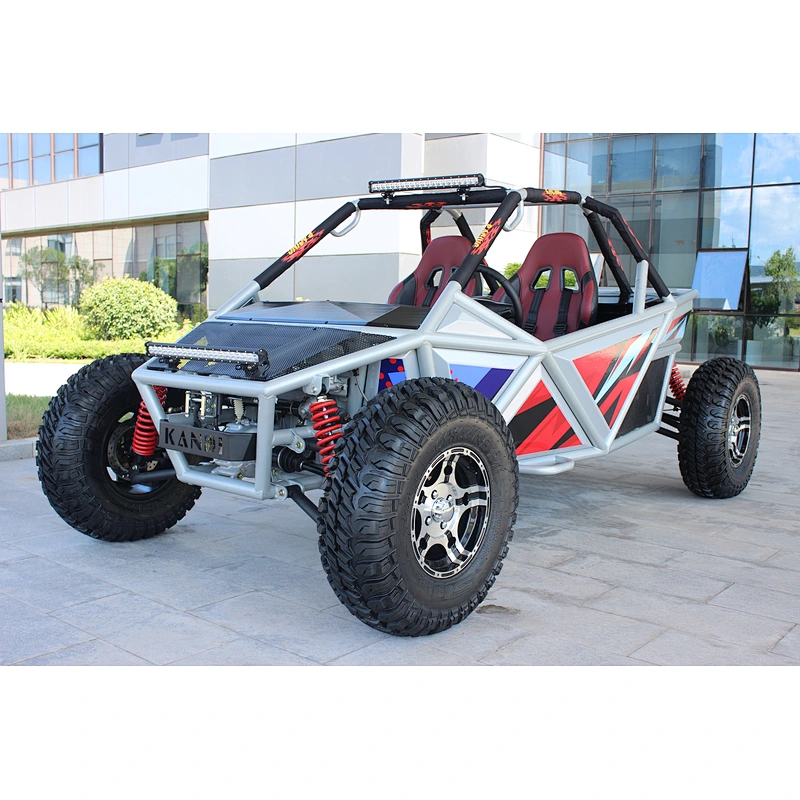

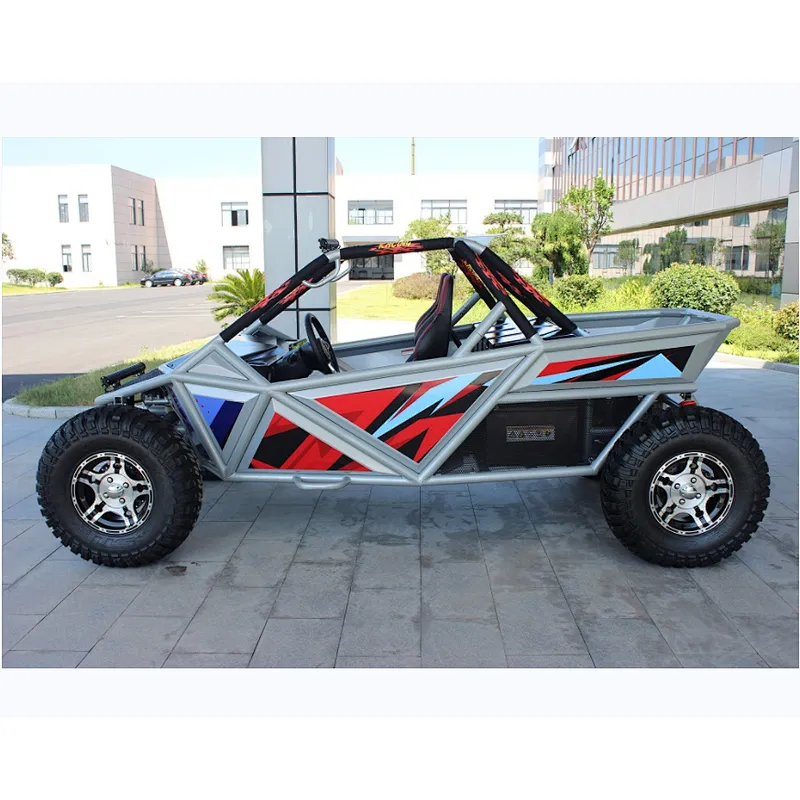

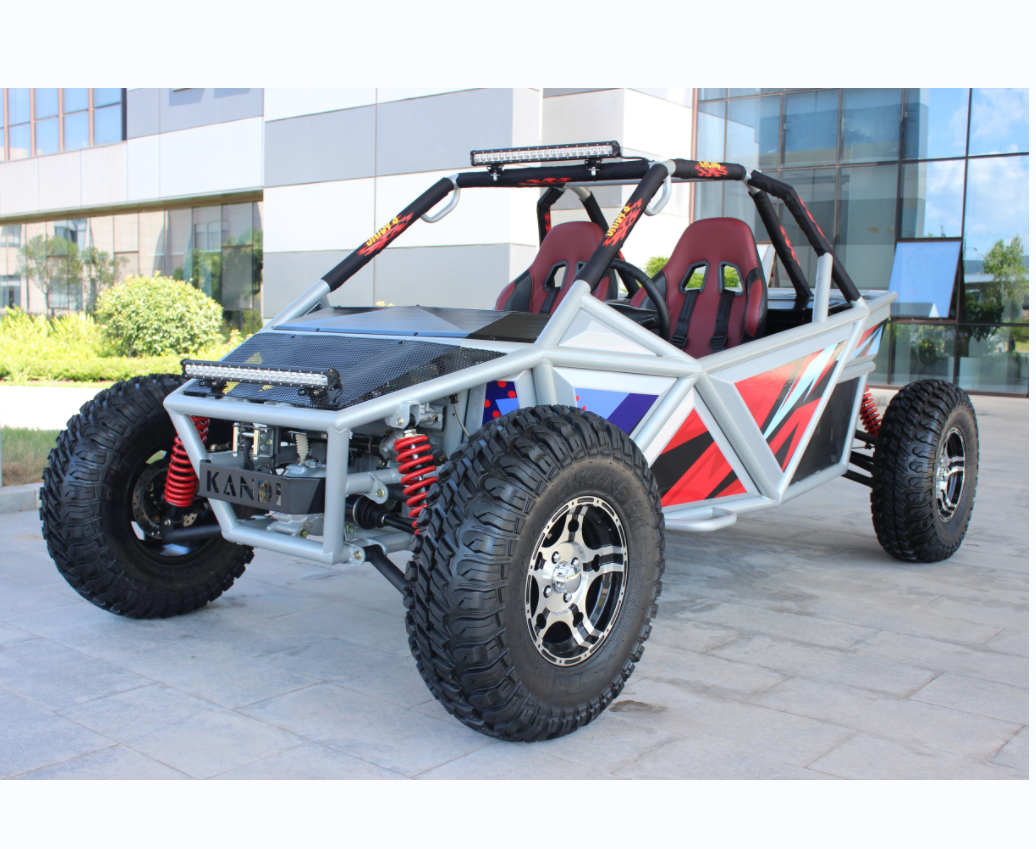

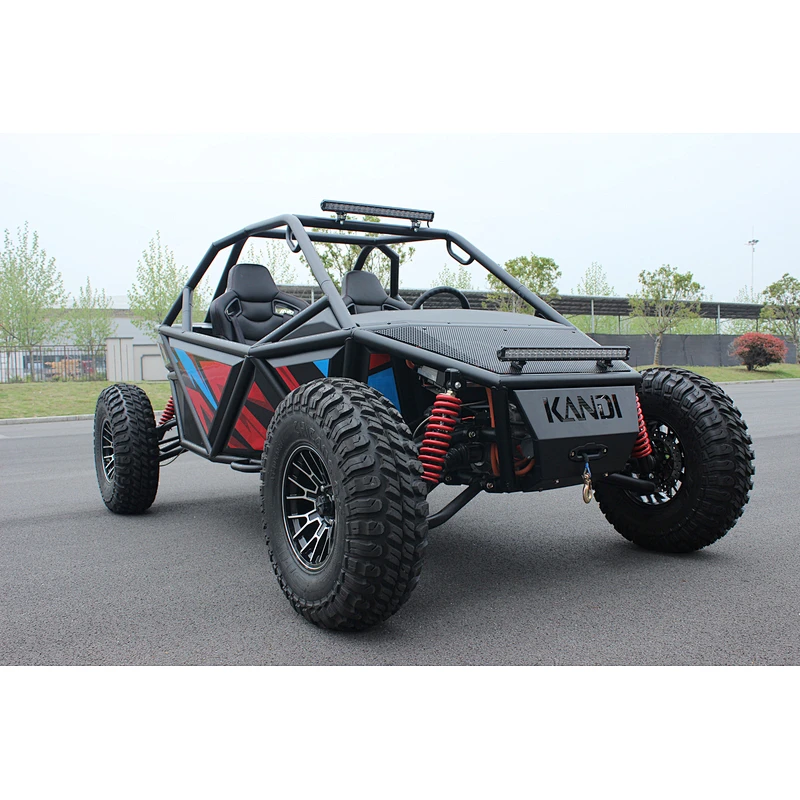

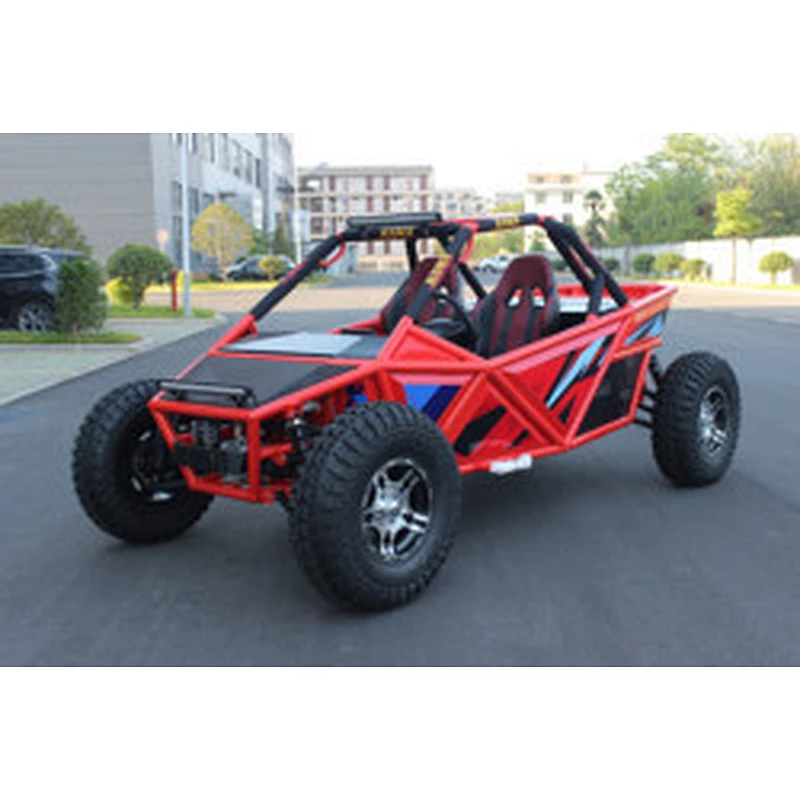

ELECTRIC BUGGY /OFF ROAD 2 SEATER GO KART

1.Overall size(L×W×H):3420*1760*1510mm

2.Distance between wheelsFront:1520mm

3.Wheelbase:2610mm

4.Driving type:Postposition,2WD/4WD

5.Passenger capacity: Person 2

6.complete vehicle kerb mass: 820kg

7.Maximum total mass: 1070kg

8.Minimum turning diameter≤9.1m

9.Minimum ground clearance≥300mm

10.Front wheel max angle(inside/outside):47/30°

11.Max speed≥90km/h

        12.Max range≥80km

13.Voltage: 160V

        14. motorTYPE: AC asynchronous

15.rated power:21kW

16.peak power:49kW

17.Rated voltage:160V

18.Rated speed:3500r/min

19.maximum speed:7000r/min

20.control method:Vector control

21.Power Battery type:Lithium Iron Phosphate Lithium Ion Battery

22.Monomer capacity:100Ah

23.Total voltage of power battery pack:153.6V

24.Total capacity of power battery pack:100Ah

25.Battery combination:2 boxes are connected in series, each battery consists of 26.cells in series

27.Brake Type :One for four hydraulic brakes, front and rear discs

28.Parking brake type:Electronic parking

       29. suspension:Double independent suspension

30.type:AT30×10R14

31.Tire rim:14×7J
