- Maximum Torque(Nm):40-60Nm
- Wheelbase:1000-1400mm
- Brake System:Front disc+Rear dsic
- Minimum Grand Clearance:≥300mm
- Tire Size:25*8-12/25*10R12
- Curb Weight:300-400kg
- Dimension:2140*1205*12302mm
- Maximum Speed:50-75Km/h
- Driving Type:Switchable 2WD/4WD
- Payload Capacity:≤100kg
- Differential Lock:Equipped
- Charge Time(h):5-7h
- Grade Ability:≥25°
- Driving Mileage:50-70km
- Transmission System:Shaft Drive
- Power:>1000W
- Voltage:>60V
- Transmission Type:Automatic
- Brand Name:JASSCOL
- Place of Origin:Zhejiang, China
- Overall Dimension:2140*1205*1230
- Wheelbase(mm):1280
- Wheel Tread(mm):1050/960
- Ground Clearance(mm):300
- Max Speed(km/h):55
- Max Distance(km):60
- Brake Type(Front/Rear):Hydraulic Disc / Hydraulic Disc
- Brake Control(Front/Rear):Foot and Hand Brake/Foot and Hand Brake
- Tire Size(Front/Rear):25*8-12/25*10R12
- Drive Mode:Rear Wheel Drive, 2WD/4WD

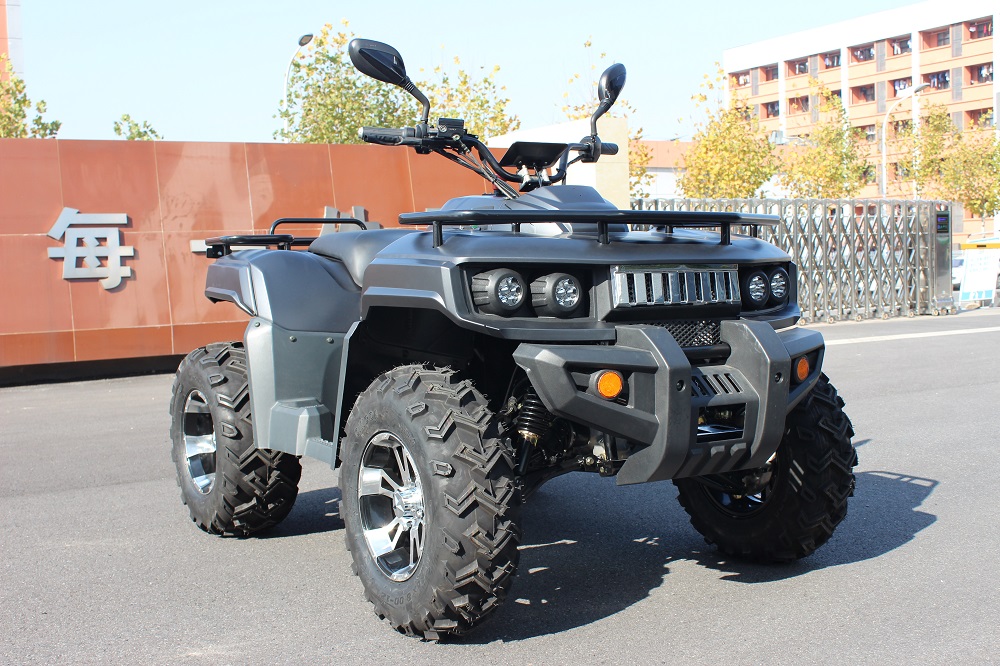

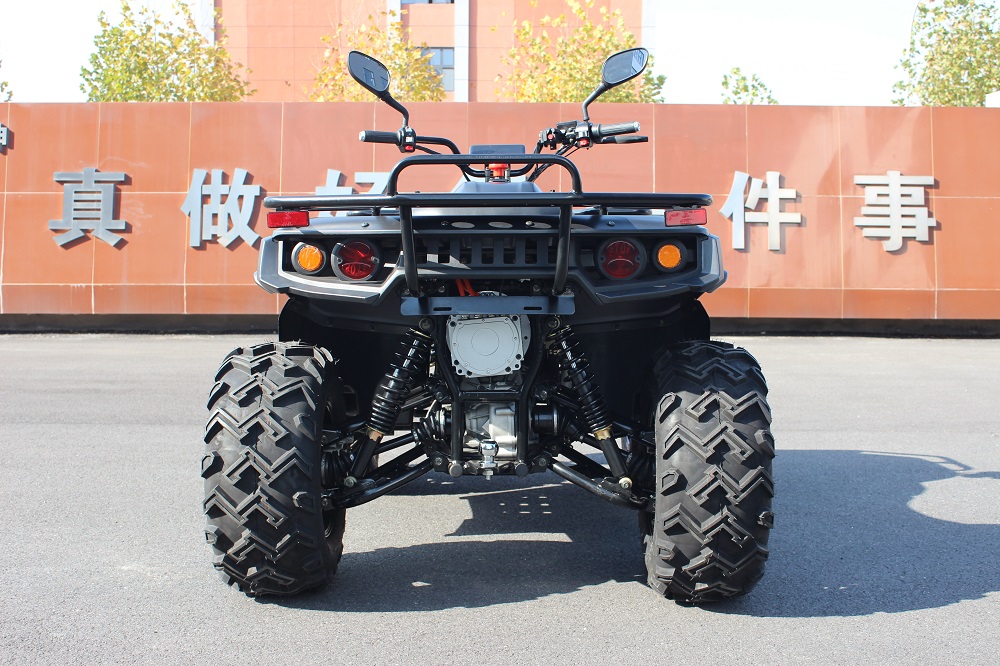

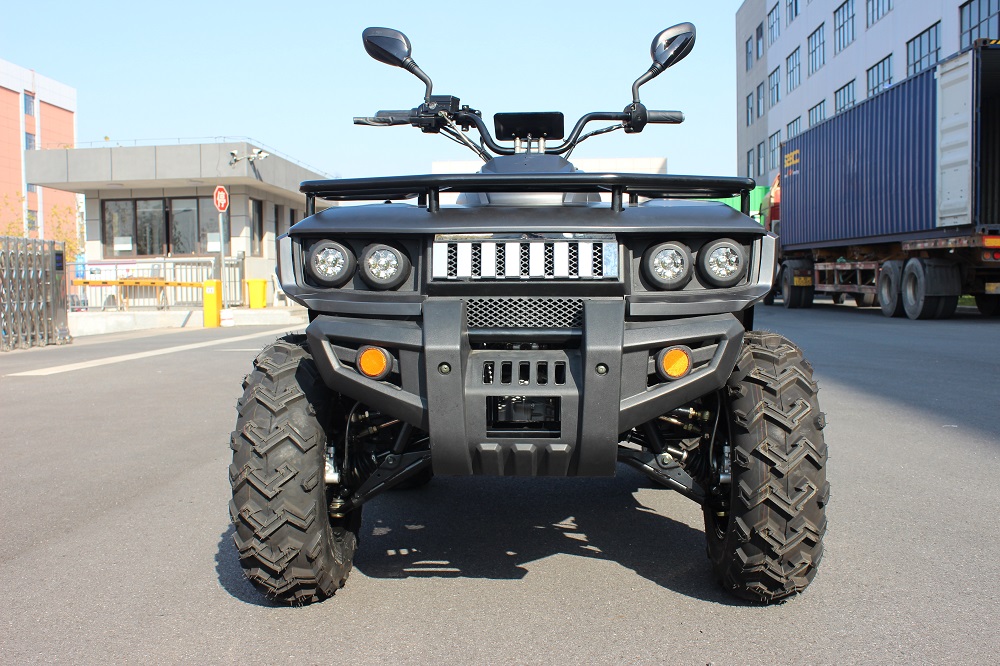

Product Description
| Overall Dimensions(Length×Width×Height)(mm) | 2140×1205×1230 |
| Wheelbase(mm) | 1280 |
| Wheel Tread(mm) | 1050/960 |
| Ground Clearance(mm) | 300 |
| Net Weight(kg) | 330 |
| Gross Weight(kg) | 382 |
| Front Axle Weight(kg) | 160 |
| Rear Axle Weight(kg) | 170 |
| Max Load(kg) | 80 |
| Max Speed(km/h) | 55 |
| Max Distance(km) | 60 |
| Brake Type(Front/Rear) | Hydraulic Disc / Hydraulic Disc |
| Brake Control(Front/Rear) | Foot and Hand Brake/Foot and Hand Brake |
| Tire Rim Type(Front/Rear) | Iron |
| Tire Size(Front/Rear) | 25×8-12/25×10R12 |
| Tire Pressure(Front/Rear)/(P.S.I) | 21P.S.I/16P.S.I |
| Drive Mode | Rear Wheel Drive, 2WD/4WD |
| Battery capacity | 72V,92.4Ah |
| Charger | 84VDC,15A |
| Controller | 72V,5KW |
| Motor Model | 155-5KW-2490/8 |
| Motor Rated Voltage(V) | 72V |
| Motor Rated Power(W) | 5KW |
| Rated speed(r/min) | 3000 |
| Rated Current(A) | 76A |
| Cooling System | Air-Cooling |
| Carton Size(mm) | 2110×1290×820 |
| Packing Quantity | 27 pcs/40'H |
