- Place of Origin:Zhejiang, China
- Brand Name:JASSCOL
- Model Number:E-3000GKA
- Type:Electric Go Karts
- Engine:ELECTRIC
- Drive Mode:CHAIN DRIVE
- Wheel Size:10INCH
- Oil Tank Capacity:ELECTRIC
- Maximum Speed:65KM/H
- Displacement:ELECTRIC 3000W
- Brake Type:DISC BRAKE
- Engine Capacity:50-200CC
- CONTROLLER:72V/3000W
- Keyword:ELECTRIC 3000W BUGGY GO KART ELECTRIC
- Color:RED YELLOW BLUE BLACK
- BATTERY:72V 67.5Ah
- RANGE:1st speed 65km/h
- fixed-voltage:72v
Product Description

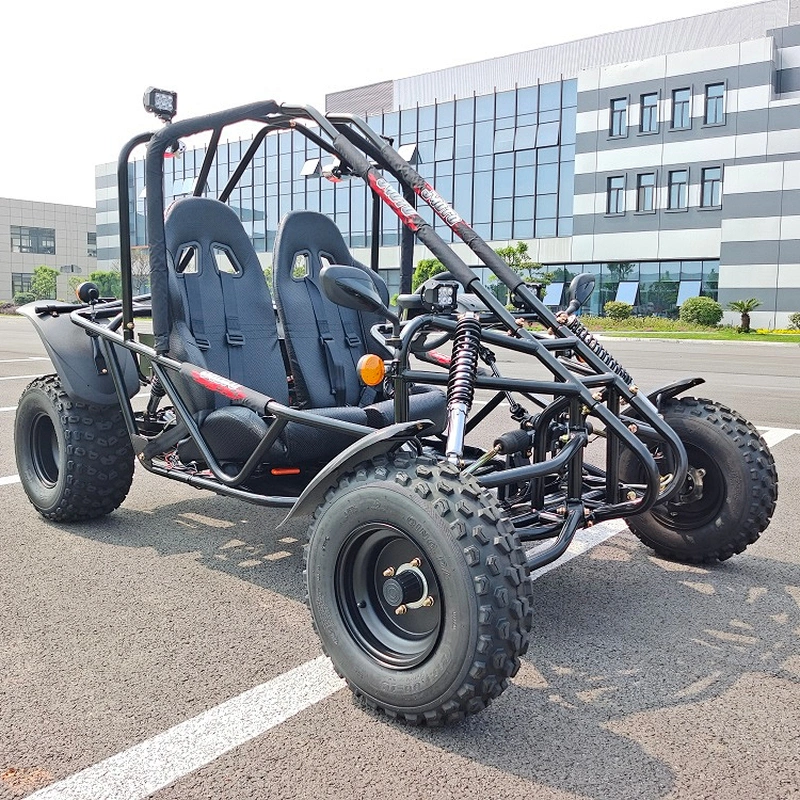

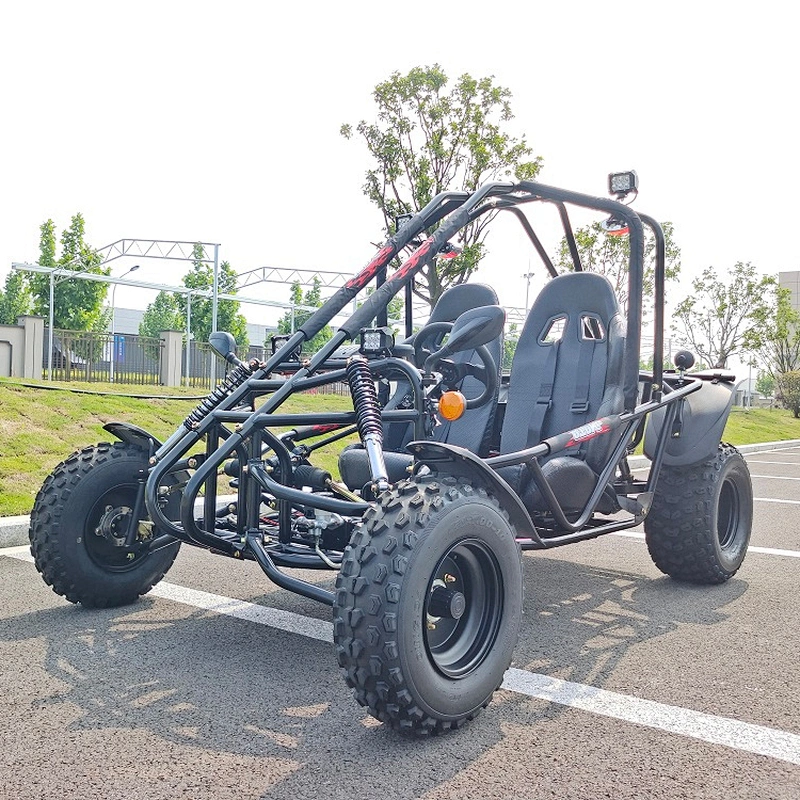

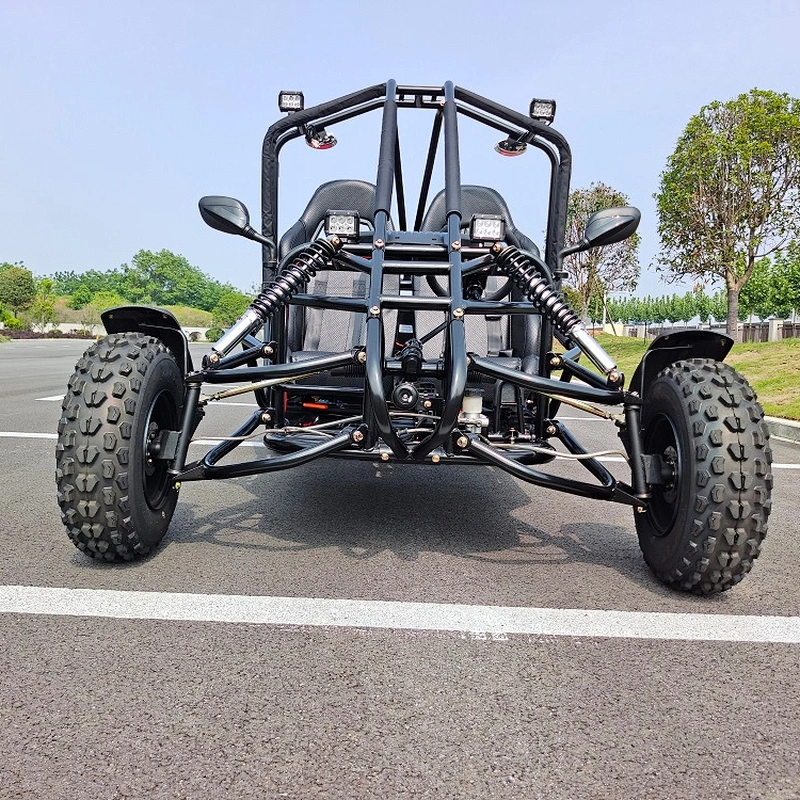

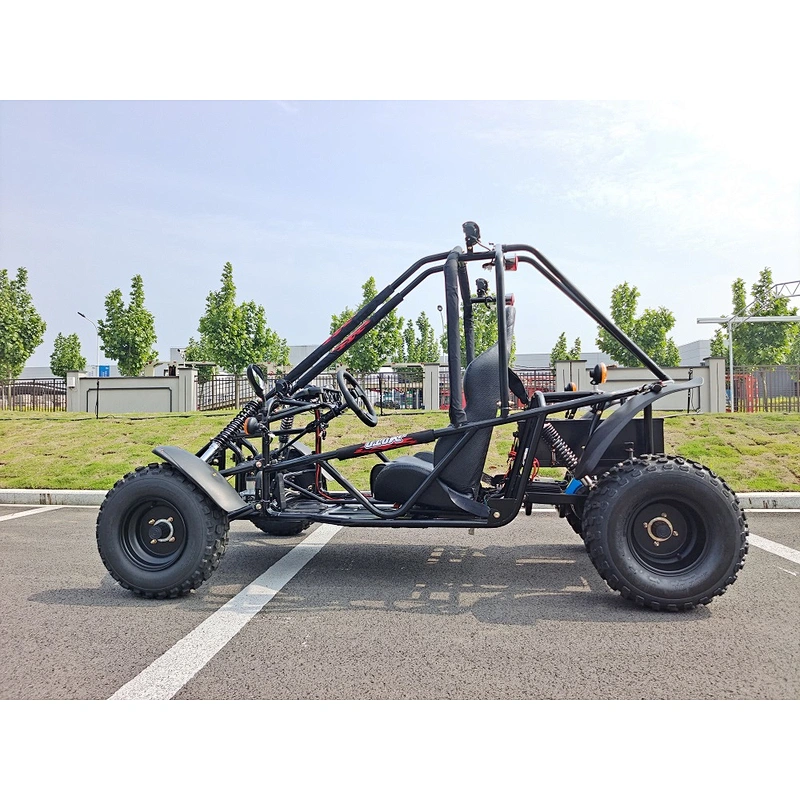

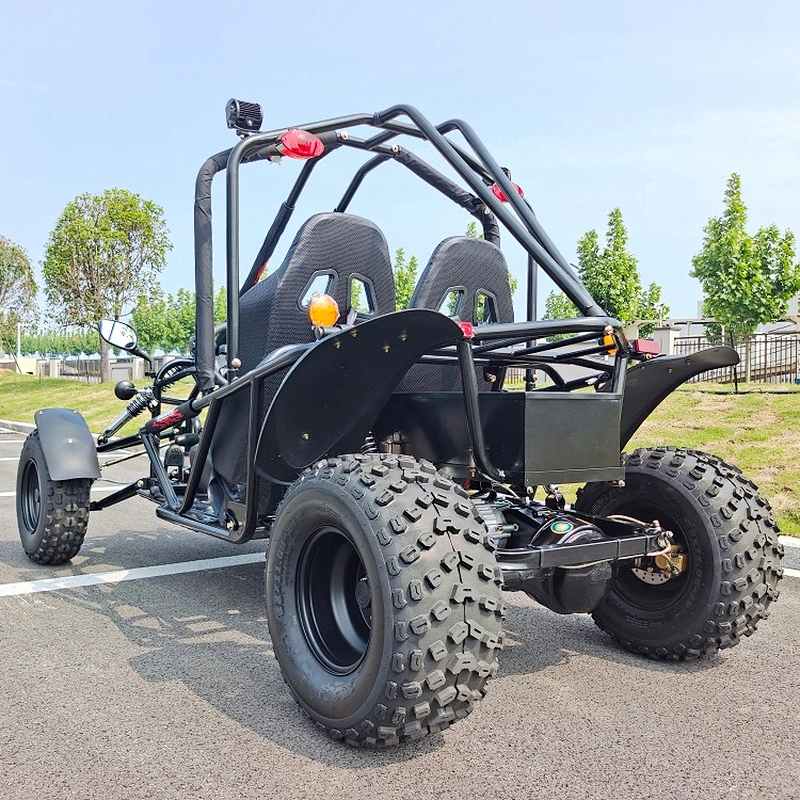

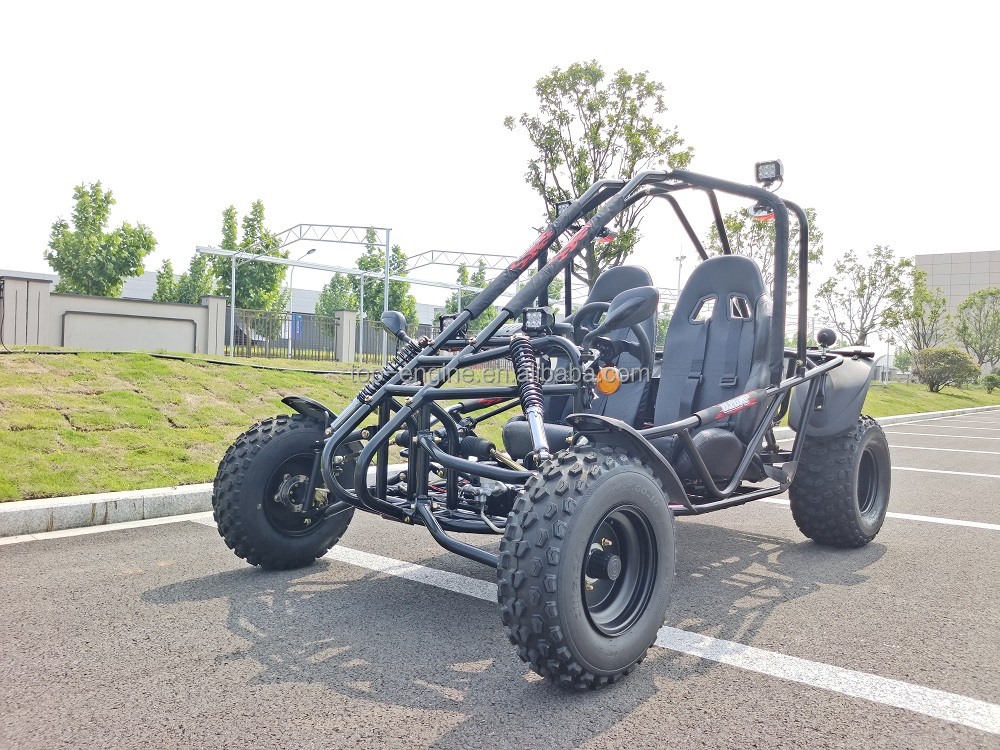

ELECTRIC 3000W BUGGY GO KART ELECTRIC
| products dimension(mm) | 2490×1450×1500 |
| Wheelbase(mm) | 1900 |
| track(mm) | 1300/960 |
| mini Ground Clearance (mm) | 155 |
| Weight(kg) | 270 |
| G.W(kg) | 318 |
| front axle N.W (kg) | 100 |
| REAR axle N.W(kg) | 170 |
| Max load(kg) | 160 |
| Max speed(km/h) | SPEED 1:40/speed 2:50/speed 3:60 |
| max range(km) | SPEED 1:65/SPEED 260/SPEED 3:50 |
| brake F/R | hydraulic disc brake |
| Brake type F/R | foot brake |
| TIRE RIM | steel rim |
| TIRE SIZE | 21×7-10/22×11-10 |
| TIRE PRESSURE/(P.S.I) | 10P.S.I/10P.S.I |
| BATTERY | 72V 67.5Ah/lithium battery |
| CHARGER | 84VDC,15A |
| Controller | 72V/3000W |
| motor No. | 146-95-7 |
| Motor rated voltage(V) | 72V |
| Motor rated power(W) | 3000W |
| rated turning speed(r/min) | 3100~3200 |
| Rated current(A) | 50 |
| cooling method | AIR COOL |
| packign size(mm) | 2310×1320×635 |
| loading | 36/40'HQ |
