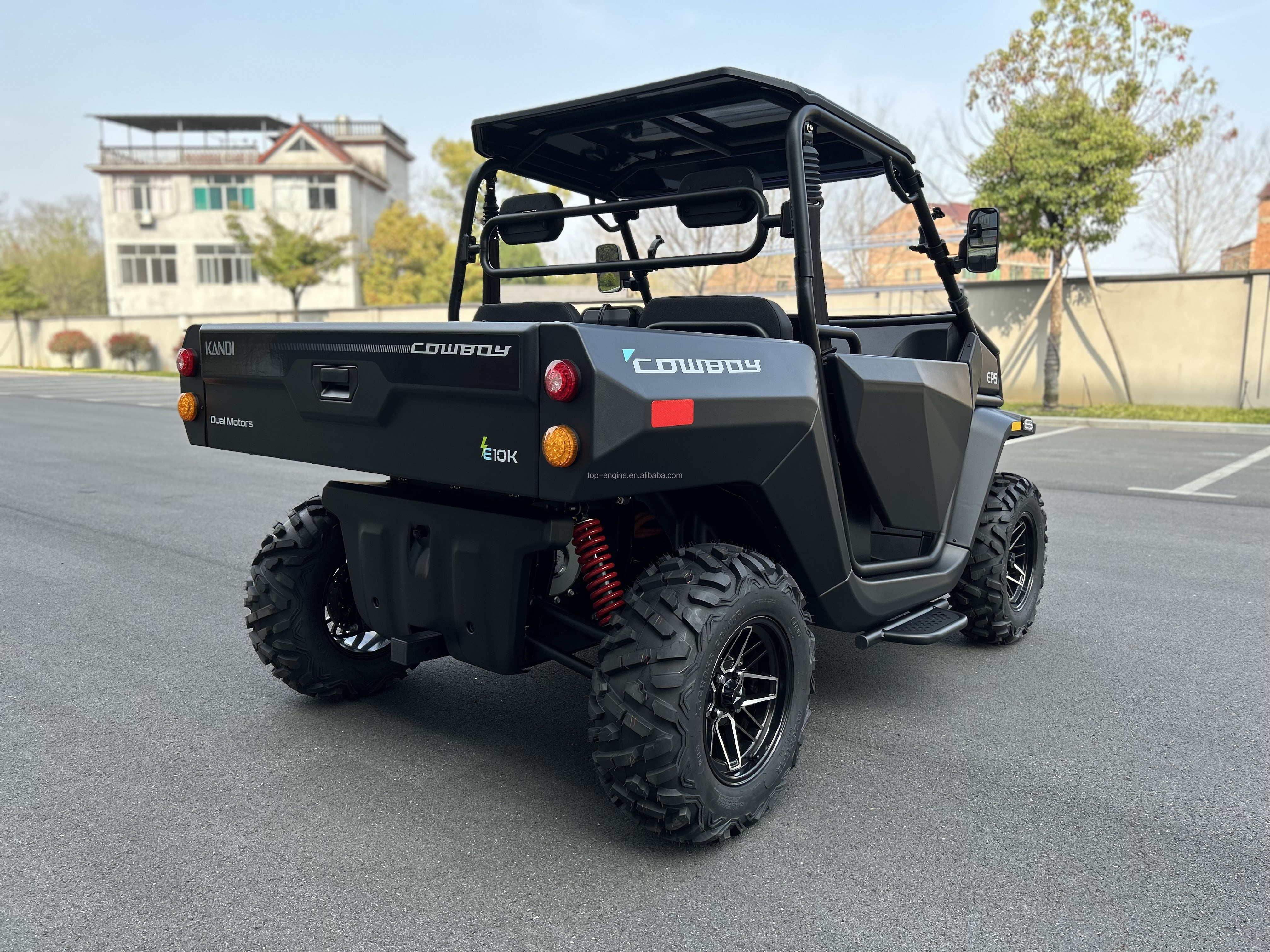

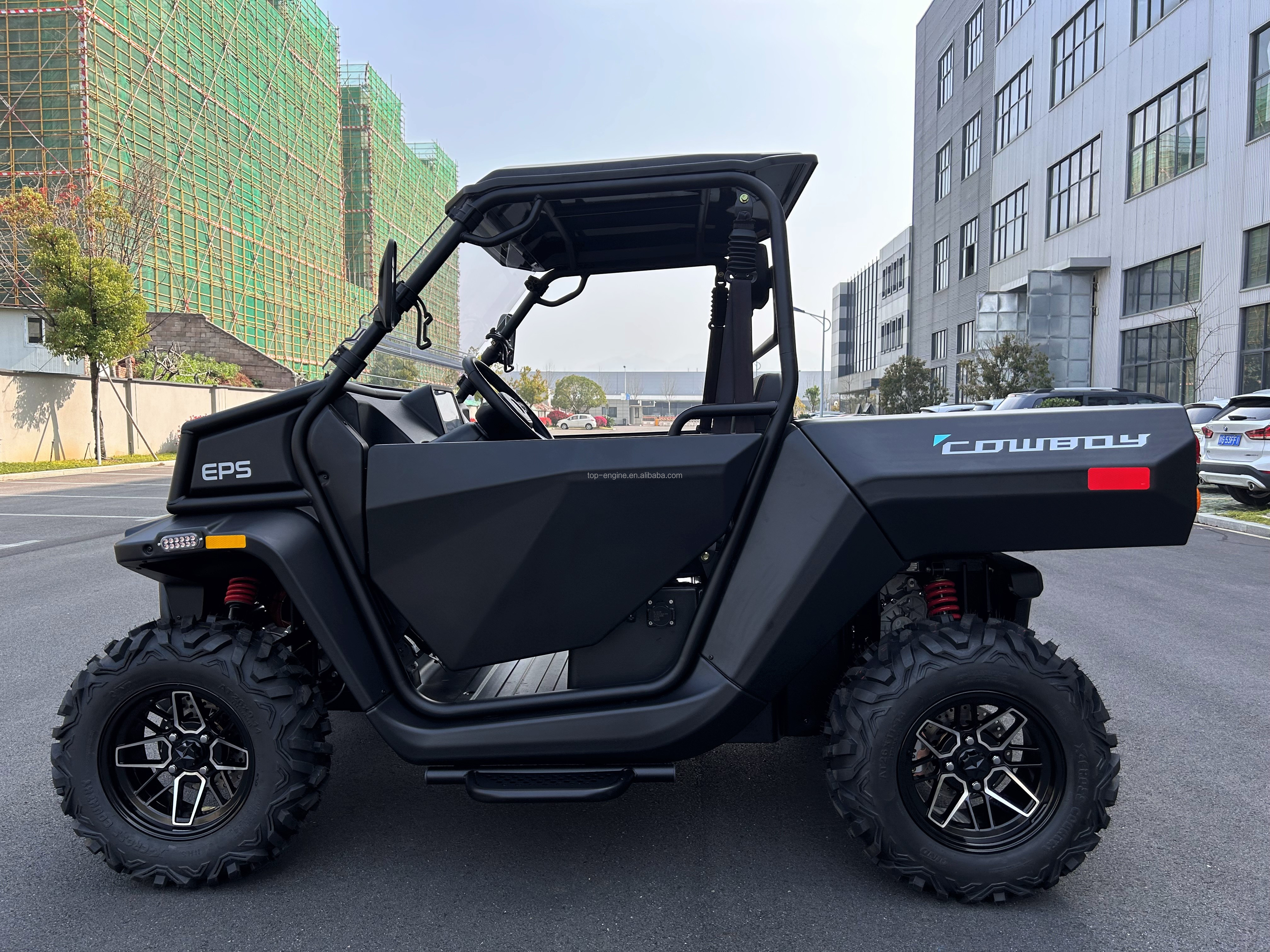

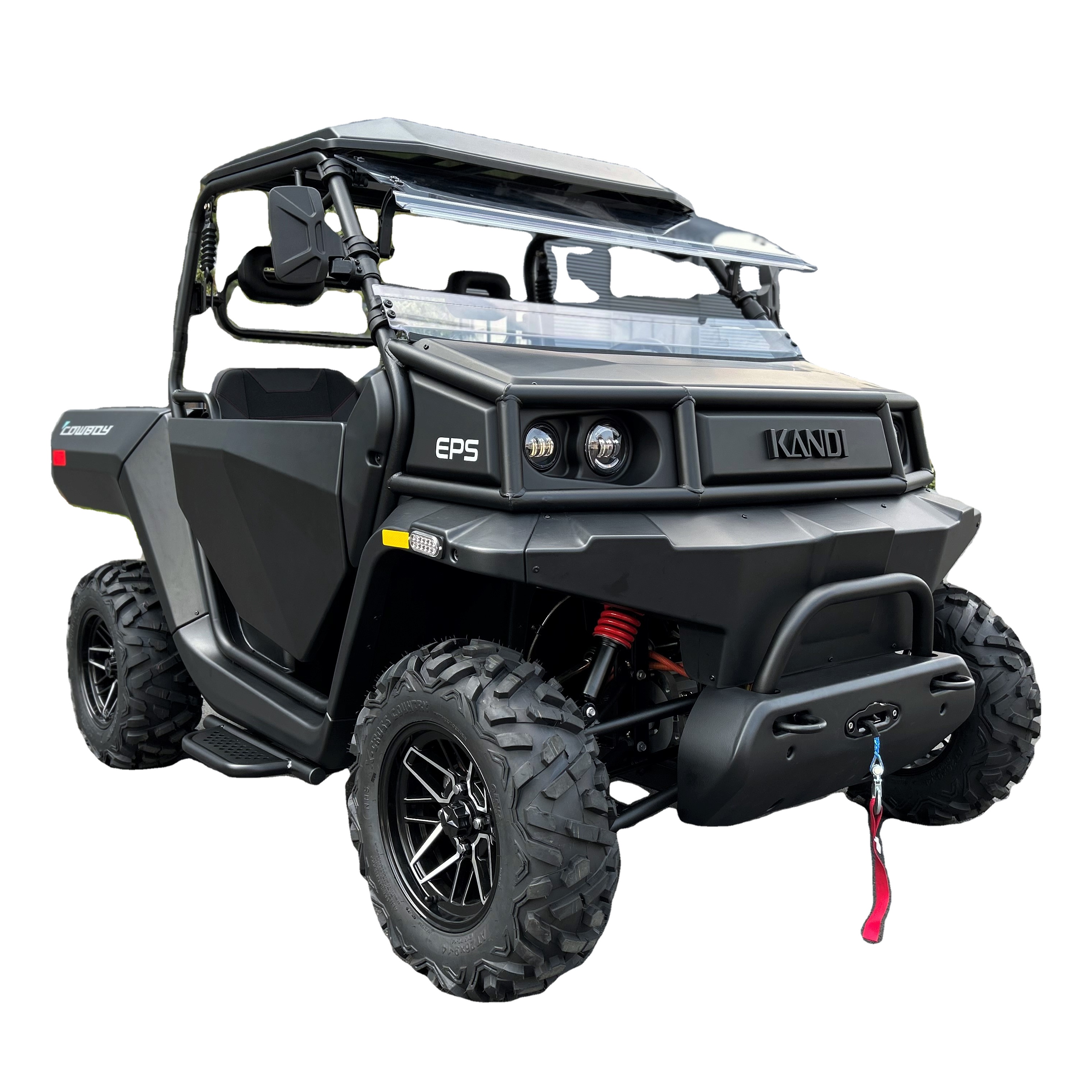

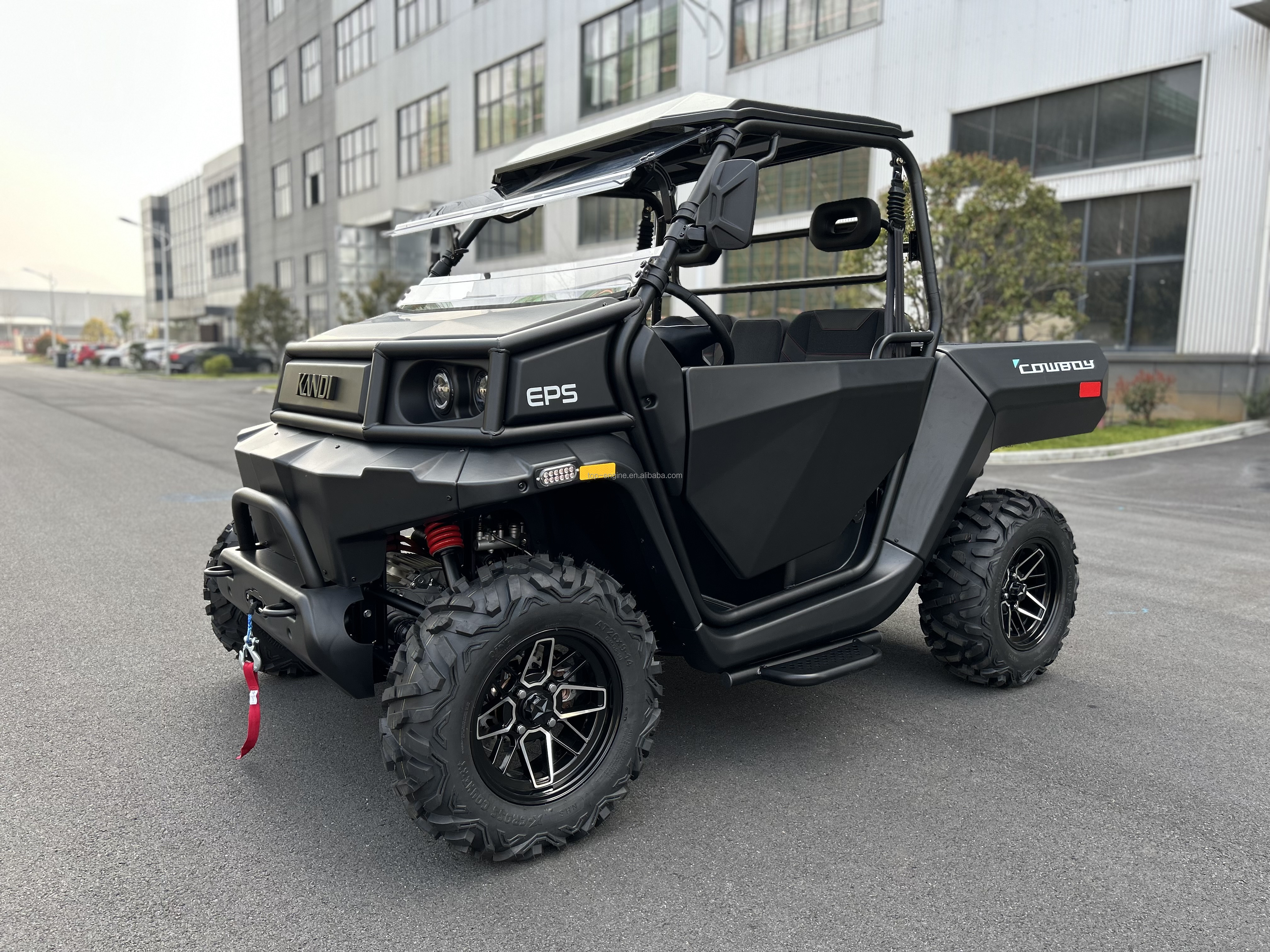

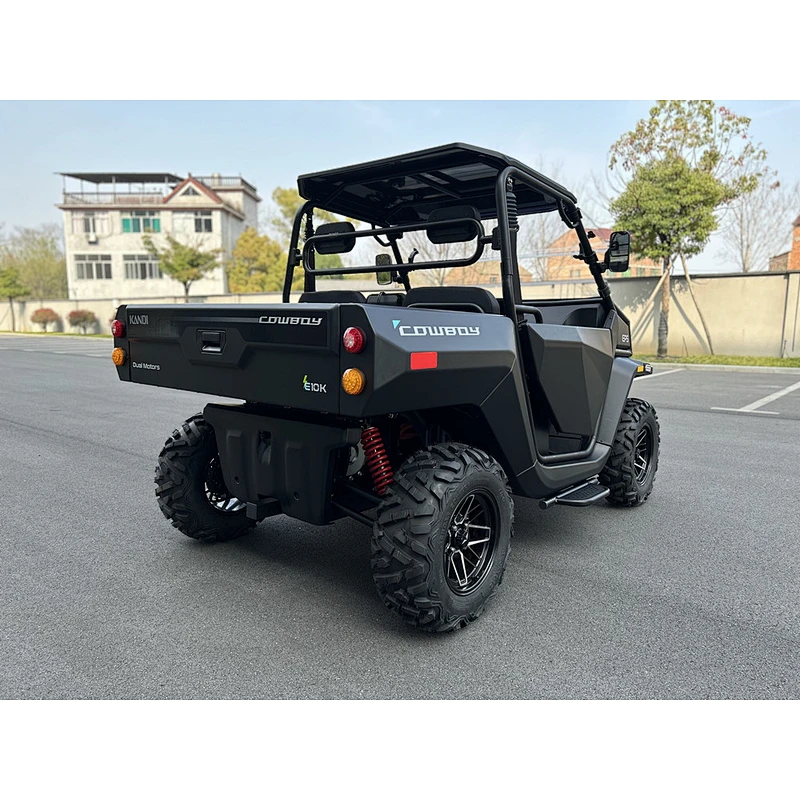

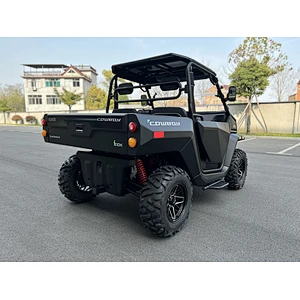

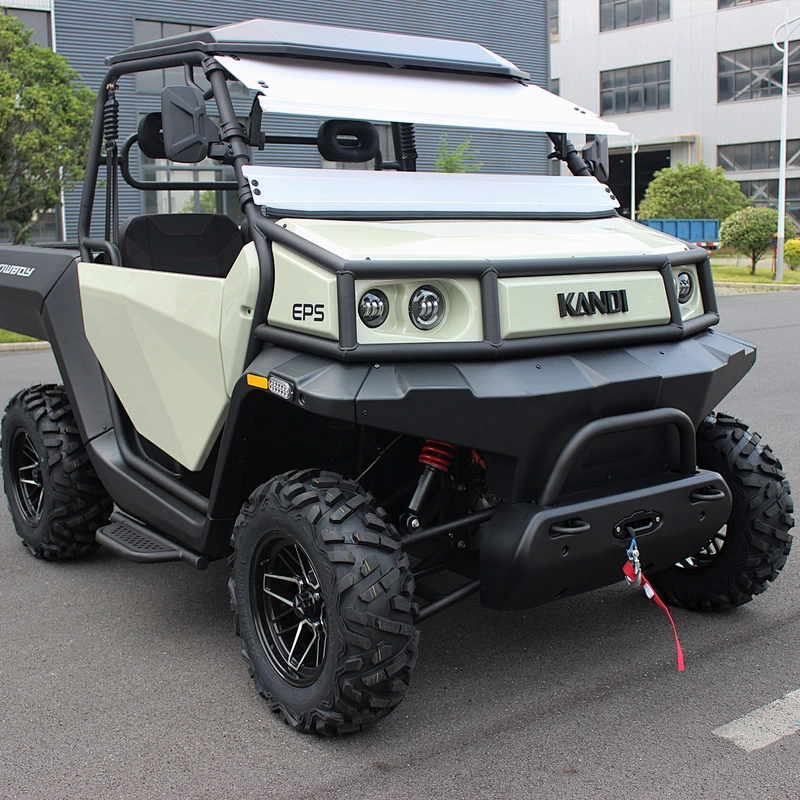

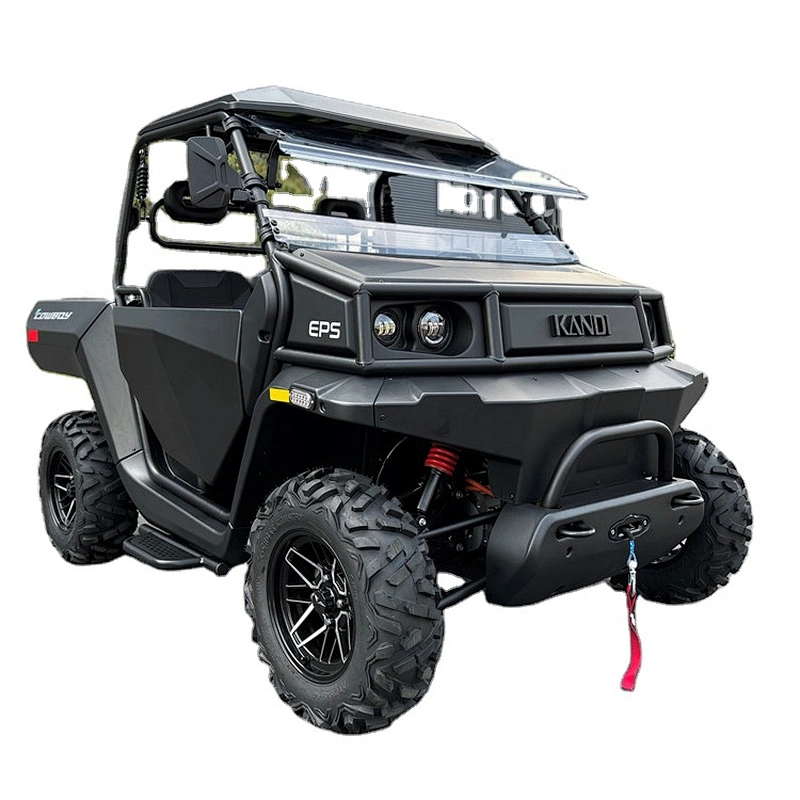

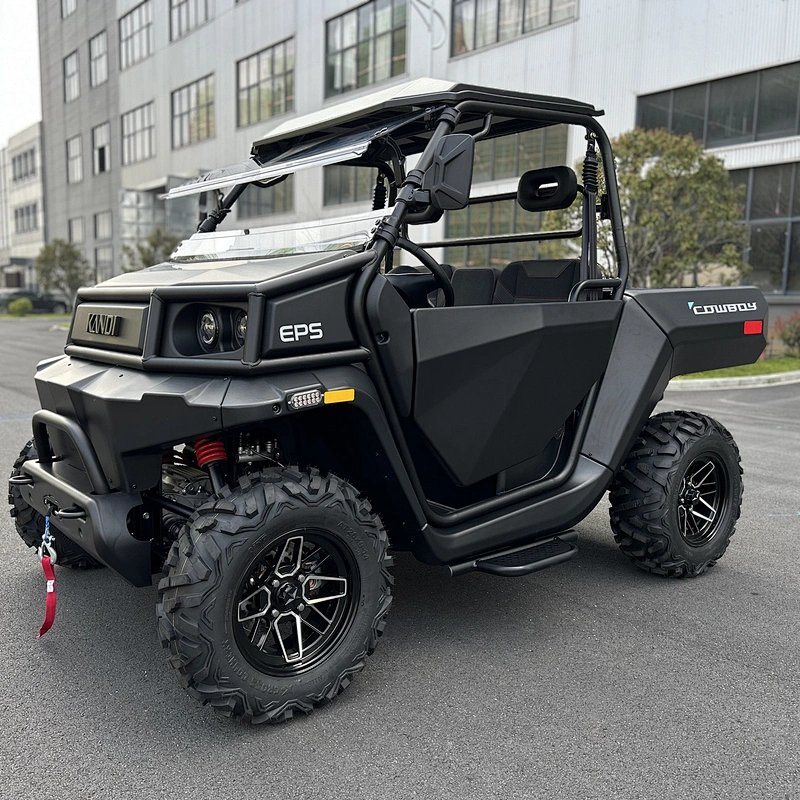

Electric UTV 20kw 72V double motor 4wd utility lithium battery powered farm UTV for adult

Electric UTV 20kw 72V double motor 4wd utility lithium battery powered farm UTV for adult

Model NO.: E10K
Price:: $ 9999.00-10999.00 / piece
Minimum order quantity: 1 piece
Country of Origin: nignbo port ,china

Quantity:

Product Description

Maximum Torque(Nm):≥80Nm
Wheelbase:1800-2200mm, 1900mm
Brake System:Front disc+Rear dsic
Minimum Grand Clearance:200-250mm
Tire Size:14inch
Curb Weight:≥500kg
Dimension:2860*1810*1850mm
Maximum Speed:50-75Km/h
Driving Type:4WD
Payload Capacity:400-500kg
Differential Lock:Unequipped
Charge Time(h):7-9h
Grade Ability:≥25°
Driving Mileage:≥90km
Type:800cc
Certificate:Eec, EPA
Transmission Type:Automatic
Place of Origin:Zhejiang, China
Brand Name:JASSCOL
Model Number:E10K
Power:>1000W
Voltage:>60V
SIZE:2860*1810*1850mm
Drive Mode:4WD
MAX SPEED:65 Km/h
Votage:72V
Gradeability:30°
Ground clearance:225mm
Rated power:20KW
Tire size:26*9-14/26*11-14
Brake:Disc Brake

ELECTRIC Car utlity 4*4 side by side UTV

Product Description

1.Overal size L*W*H :2860*1810*1850mm
2.Distance between wheels F/R :1470*1400mm
3.Wheelbase:1900 mm
4.Front/REAR shock absorber :435mm /525mm
5.Driving type: F/R double motor,4WD
6.Passenger: 2
7.Vehicle :780kg
8. Minimum turning diameter≤9.5m
9.Minimum ground clearance mm ≥225
10.Max speed≥65km/h,(0-50km/hAcceleration time≤9s)
11.Max gradeability≥30%
12.Brake distance(m) 40km/h ≤20
13.Maximum range:(40km/h equal speed method, flat road surface) ≥100km
14.Rated voltage:72V
15.electric motor TYPE:AC asynchronous , Motor layout: FONT+REAR.
16.rated power:5kW
17.peak power:20kW ,Peak torque:200N.M
18.Rated voltage:72v
19.Rated turning speed:3000r/min
20.maximum turning speed:6500r/min
21.Rated power/capacity: 3.5 kW
22.Power Battery type:Lithium Ion Battery
23.The nominal voltage of the cell :3.2V
24.Monomer capacity:150 Ah
25.Total voltage of power battery pack :25.6V
26.Total capacity of power battery pack:150Ah
27.Battery combination:3 boxes series, each box of the battery consists of 8 monomers in series
28.Steering type:EPS
29.Brake system Type :Hydraulic F/R disc brake
30.Parking brake type: Foot brake
31.Front /rear suspension type:Double independent suspension
32.type Spec.:AT26×9_14 / AT26×11_14
33.Tire rim: ALLOY RIM 14×6J / 14×8J
34.Remote control: remote unlock .
35.Car information system:PAD
36.MANAGEMENT SYSTEM:TBOX/BMS/BTMS
37.Safty system:seat belt/hazard warning/light switch/astern video/astern buzzer
38.other configuration:3500lbs winch
39.color: blue , red,black.
